OUR PART NUMBER

PART NO.

BORE(mm)

ENGINE

PRICE

SH90443

622/300

22

4 Stroke

 £72-00p.

SH90455

622/302

22

2 Stroke

 £72-00p.

SH90445

624/300

24

4 Stroke

 £72-00p.

SH90457

624/302

24

2 Stroke

 £72-00p.

SH90447

626/300

26

4 Stroke

 £72-00p.

SH90459

626/302

26

2 Stroke

 £72-00p.

OUR PART NUMBER

PART NO.

BORE(mm)

ENGINE

PRICE

SH90442

622/301

22

4 Stroke

 £72-00p.

SH90454

622/303

22

2 Stroke

 £72-00p.

SH90444

624/301

24

4 Stroke

 £72-00p.

SH90456

624/303

24

2 Stroke

 £72-00p.

SH90446

626/301

26

4 Stroke

 £72-00p.

SH90458

626/303

26

2 Stroke

 £72-00p.

OUR PART NUMBER

PART NO

BORE(mm)

ENGINE

PRICE

SH90449

928/300

28

4 Stroke

 £72-00p.

SH90461

928/302

28

2 Stroke

 £72-00p.

SH9045 1

930/300

30

4 Stroke

 £72-00p.

SH90463

930/302

30

2 Stroke

 £72-00p.

SH90453

932/300

32

4 Stroke

 £72-00p.

SH90465

932/302

32

2 Stroke

 £72-00p.

OUR PART NUMBER

AMAL PART NO

BORE(mm)

ENGINE

PRICE

SH90448

928/301

28

4 Stroke

 £72-00p.

SH90460

928/303

28

2 Stroke

 £72-00p.

SH90450

930/301

30

4 Stroke

 £72-00p.

SH90462

930/303

30

2 Stroke

 £72-00p.

SH90452

932/301

32

4 Stroke

 £72-00p.

SH90464

932/303

32

2 Stroke

 £72-00p.

OUR PART NUMBER

AMAL PART NO

BORE(mm)

ENGINE

PRICE

SH90605

627/66

27

4 Stroke

 £72-00p.

OUR PART NUMBER

AMAL PART NO

BORE(mm)

ENGINE

PRICE

SH90606

627/66

27

4 Stroke

 £72-00p.

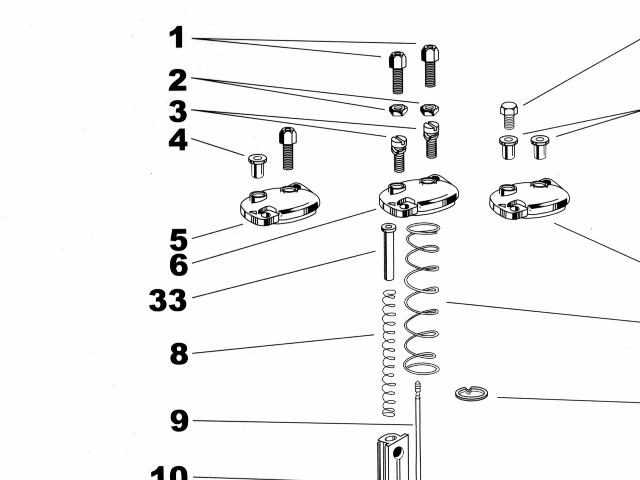

OUR PART NO.

_{NUMBER ON ILLUSTRATION}

DESCRIPTION

600 SERIES.

PRICE

SH90001

1

Cable adjuster

4/035

 £1-40P.

SH90102

2

Cable adjuster locknut

5/077

£0-65p.

SH90385

3

Securing screw for float bowl and mixing chamber top

622/086

£0-58p.

SH90105

4

Cable ferrule for use with mid-cable adjuster

6/132A

£0-80p.

SH90386

5

Mixing chamber top for adjuster and ferrule

622/097

£4-00p.

SH90371

6

Mixing chamber top (standard)

622/064

£5-32p.

SH90398

7

Throttle slide spring

622/131

£1-28p.

SH90397

8

Choke valve spring

622/129

£0-88P.

SH90370

9

Throttle needle(paired with needle jet 622/079) 2 stroke

622/063

£3-36P.

SH90395

9

Throttle needle(paired with needle jet 622/122) 4 stroke

622/124

£2-88P.

SH90388

9

Throttle needle (for alcohol only)

622/099

£3-50P.

SH90369

10

Choke valve

622/062

£5-25P.

SH90364

11

Throttle slide (No 2 cutaway)

622/060/2

 E-MAIL

SH90365

11

Throttle slide (No 2 1/2 cutaway)

622/060/2.5

£10-00P.

SH90366

11

Throttle slide (No 3 cutaway)

622/060/3

£10-00P.

SH90367

11

Throttle slide (No 3 1/2 cutaway)

622/060/3.5

£10-00P.

SH90368

11*

Throttle slide (No 4 cutaway)

622/060/4

£10-00P.

SH90471

12*

Carburettor body (4 stroke)

L622

£44-80P.

SH90472

12*

Carburettor body (4 stroke)

R622

£44-80P.

SH90473

12*

Carburettor body (4 stroke)

L624

£44-80P.

SH90474

12*

Carburettor body (4 stroke)

R624

£44-80P.

SH90475

12*

Carburettor body (4 stroke)

L626

£37-15P,

SH90476

12*

Carburettor body (4 stroke)

R626

£44-80P.

SH90422

13

Velocity stack (custom made, aluminium)

928/076

£22-65P.

SH90184

13

Velocity stack (standard)

376/066

£2-08P.

14

Pilot jet. See Pilot & Power jet chart

 E-MAIL

SH90380

15

Needle jet (2 stroke 105)

622/079/1 OS

£5-31P.

SH90381

15

Needle jet (2 stroke 106)

622/079/106

£5-31P.

SH90382

15

Needle jet (2 stroke 107)

622/079/107

£3-44P.

SH90715

15

Needle jet (2 stroke 108)

622/079/108

£3-50P.

SH90383

15

Needle jet (2 stroke 109)

622/079/109

£4-41P.

SH90392

15

Needle jet (4 stroke 105)

622/122/1 OS

£4-65P.

SH90393

15

Needle jet (4 stroke 106)

622/122/106

£4-00P.

SH90394

15

Needle jet (4 stroke 107)

622/122/107

£4-65P.

SH90719

15

Needle jet (4 stroke 108)

622/122/108

£4-68P.

SH90800

15

Needle jet (4 stroke 109)

622/122/109

 £4-09P.

SH90389

15

Needle jet (alcohol only 120)

622/100/120

 £4-32P.

SH90717

15

Needle jet (alcohol only 125)

622/100/125

 £4-32P.

SH90396

16

Jet holder

622/128

£4-16P.

17

Main jet. Sizes 50 to 980

£2-78p.

SH90406

18

Float needle (Viton tip)

622/197

 £7-15P.

SH90809

18

Float needle (alloyalcohol only.

622/279

 £7-15P.

SH90374

19

Float

622/069

£6-64P.

SH90376

20

Float bowl washer

622/073

£0-80P.

SH90708

21

Float bowl 0.1 Din. (2.Smm) seating

622/050

 E-MAIL

SH90712

21

Float bowl 0.1 Din. seating with drain plug

622/055

£15-55P.

SH90710

21

Float bowl 0.062in. (1.6mm) seating

622/052

 £19-16P.

SH90714

21

Float bowl 0.062in. seating with drain plug

622/057

£18-92P.

SH90709

21

Float bowl 0.125in. (3.2mm) seating

622/051

 E-MAIL

SH90713

21

Float bowl 0.l2Sin. seating with drain plug

622/056

£18-94P.

SH90711

21

Float bowl 0.lS6in(4.Omm) seating, alcohol use only)

622/054

 £19-71P.

SH90216

22

Filter

376/093

£1-44P.

SH90215

22

Filter (alcohol only)

376/093B

£4-12P.

SH90219

23

Banjo, single, push-on (1/4" inside diameter tubing)

376/097

 £3-84P.

SH90331

23

Banjo, double, 150 deg., push-on (5/16" tubing)

376/139

£4-70P.

SH90338

23

Banjo, double, 55 deg., push-on (5/16" tubing)

376/410

 £5-95P.

SH90707

23

Banjo, double, 180 deg., push-on (1/4" tubing)

376/419

£2-88P.

SH90112

N/IIIust Banjo washer (alcohol only)

14/175

 £0-75P.

SH90379

24

Banjo bolt

622/078

£1-44P.

SH90107

_{NUMBER ON ILLUSTRATION}

N/IIIust Banjo bolt washer (diecast banjos only)

13/163

£1-00P.

SH90375

25

Float spindle

622/071

£0-64P.

SH90378

26

Throttle stop adjusting screw

622/077

 £1-07P.

SH90377

27

Pilot air adjusting screw

622/076

£0-64P.

SH90384

28

'O' rings

622/082

 £1-00P.

SH90372

29

Needle clip

622/067

£1-21P.

SH90387

30

Mixing chamber top for two ferrules

622/098

£4-27P.

SH90092

31

Plug for mixing chamber top

4/137A

 £1-04P.

SH90390

32

'O' ring for flange sealing

622/101

£1-36P.

SH90720

33

Choke Valve guide

622/134

£1-45P.

SH90400

34

Float bowl drain plug washer

622/151

 £0-92P.

SH90802

35

Float bowl drain plug (plastic)

622/147

£1-28P.

SH90401

35

Float bowl drain plug (metal)

622/155

 £2-60P.

SH90979

36

Spray Tube

928/107

£2-32P.

SH90981

37

Spray Tube

622/075

 £2-33P.

SH90980

38

Spray Tube

622/074

£2-00P.

SH90722

_{NOT SHOWN}

Main jet filter

928/071

£3-02P.

SH90165

_{NOT SHOWN}

N/IIlust Cable sheath

316/083

£1-68P.

OUR PART NO.

_{NUMBER ON ILLUSTRATION}

900 SERIES

PRICE

SH90001

1

Cable adjuster

4/035

£1-40P.

SH90102

2

Cable adjuster locknut

5/077

£0-65p.

SH90385

3

Securing screw for float bowl and mixing chamber top

622/086

£0-58p.

SH90105

4

Cable ferrule for use with mid-cable adjuster

6/132A

£0-80p.

SH90423

5

Mixing chamber top for adjuster and ferrule

928/097

£4-72P.

SH90418

6

Mixing chamber top (standard)

928/064

£4-19P.

SH90398

7

Throttle slide spring

622/131

£4-00p.

SH90397

8

Choke valve spring

622/129

£0-88P.

SH90417

9

Throttle needle paired with needle jet 622/079) 2 stroke (

928/063

£3-02P.

SH90395

9

Throttle needle (paired with needle jet 622/122) 4 stroke

622/124

£2-88P.

SH90425

9

Throttle needle (for alcohol only)

928/099

£3-79P.

SH90416

10

Choke valve

928/062

£4-32P.

SH90411

11

Throttle slide(No 2 cutaway)

928/060/2

£11-04P.

SH90412

11

Throttle slide (No 2 1/2 cutaway)

928/060/2.5

 £11-04P.

SH90413

11

Throttle slide (No 3 cutaway)

928/060/3

 £11-04P.

SH90414

11

Throttle slide (No 3 1/2 cutaway)

928/060/3.5

 £11-04P.

SH90415

11

Throttle slide (No 4 cutaway)

928/060/4

 £11-04P.

SH90477

12

Carburettor body (4 stroke)

L928

£39-20P.

SH90478

12

Carburettor body (4 stroke)

R928

 £39-20P.

SH90479

12

Carburettor body (4 stroke)

L930

£42-76P.

SH90480

12

Carburettor body (4 stroke)

R930

£42-76P.

SH90481

12

Carburettor body (4 stroke)

L932

£41-60P.

SH90482

12

Carburettor body (4 stroke)

R932

£41-60P.

N.B Also available in 2 stroke - Please

 E-MAIL

SH90419

13

Velocity stack (standard) 14 Pilot jet. See Pilot & Power jet chart

928/066

£0-80P.

SH90380

15

Needle jet (2 stroke 105)

622/079/106

 £5-31P.

SH90381

15

Needle jet (2 stroke 106)

622/079/106

£5-31P.

SH90382

15

Needle jet (2 stroke 107)

622/079/107

 £3-44P.

SH90715

15

Needle jet (2 stroke 108)

622/079/108

 £3-50P.

SH90383

15

Needle jet (2 stroke 109)

622/079/109

 £4-41P.

SH90392

15

Needle jet (4 stroke 105)

622/122/105

 £4-65P.

SH90393

15

Needle jet (4 stroke 106)

622/122/106

 £4-00P.

SH90394

15

Needle jet (4 stroke 107)

622/122/107

 £4-65P.

SH90719

15

Needle jet (4 stroke 108)

622/122/108

 £4-68P.

SH90800

15

Needle jet (4 stroke 109)

622/122/109

£4-09P.

SH90389

15

Needle jet (alcohol only 120)

622/100/120

 £4-32P.

SH90717

15

Needle jet (alcohol only 125)

622/100/125

£4-32P.

SH90396

16

Jet holder

622/128

£4-16P.

17

Main jet. Sizes 50 to 980

£2-78p.

SH90406

18

Float needle (Viton tip)

622/197

£2-56P.

SH90809

18

Float needle (alloy alcohol only)

622/279

£7-15P.

SH90374

19

Float

622/069

 £6-64P.

SH90376

20

Float bowl washer

622/073

£0-80P.

SH90708

21

Float bowl 0.1 Din. (2.Smm) seating

622/050

 E-MAIL

SH90712

21

Float bowl 0.1 Din. seating with drain plug

622/055

 £15-55P.

SH90710

21

Float bowl 0.062in. (1.6mm) seating

622/052

£19-16P.

SH90714

21

Float bowl 0.062in. seating with drain plug

622/057

 £18-92P.

SH90709

21

Float bowl 0.l2Sin. (3.2mm) seating

622/051

 E-MAIL

SH90713

21

Float bowl 0.l2Sin. seating with drain plug

622/056

 £18-94P.

SH90711

21

Float bowl 0.lS6in(4.Omm) seating, alcohol use only)

622/054

£19-71P.

SH90216

22

Filter

376/093

£1-44P.

SH90215

22

Filter (alcohol only)

376/093B

 £4-12P.

SH90219

23

Banjo, single, push-on (1/4" inside diameter tubing)

376/097

£3-84P.

SH90331

23

Banjo, double, 150 deg., push-on (5/16" tubing)

376/139

 £4-70P.

SH90338

23

Banjo, double, 55 deg., push-on(5/16" tubing)

376/410

£5-95P.

SH90707

23

Banjo, double, 180 deg., push-on (1/4" tubing)

376/419

 £2-88P.

SH90112

N/IIIust Banjo washer (alcohol only)

14/175

£0-75P.

SH90379

24

Banjo bolt N/IIIust

622/078

 £1-44P.

SH90107

Banjo bolt washer (diecast banjos only)

13/163

£1-00P.

SH90375

25

Float spindle

622/071

 £0-64P.

SH90378

26

Throttle stop adjusting screw

622/077

£1-07P.

SH90377

27

Pilot air adjusting screw

622/076

 £0-64P.

SH90384

28

'O' rings

622/082

£1-00P.

SH90372

29

Needle clip

622/067

 £1-21P.

SH90424

30

Mixing chamber top for two ferrules

928/098

 E-MAIL

SH90092

31

Plug for mixing chamber top

4/137A

£1-04P.

SH90390

32

'O' ring for flange sealing

622/101

 £1-36P.

SH90721

33

Choke Valve guide

928/103

£0-96P.

SH90400

34

Float bowl drain plug washer

622/151

£0-92P.

SH90802

35

Float bowl drain plug (plastic)

622/147

 £1-28P.

SH90401

35

Float bowl drain plug (metal)

622/155

£2-60P.

SH90979

36

Spray Tube

928/107

 £2-32P.

SH90981

37

Spray Tube

622/075

£2-33P.

SH90980

38

Spray Tube

622/074

 £2-00P.

SH90722

N/lllust Main jet filter

928/071

 £3-02P.

SH90165

N/IIlust Cable sheath

316/083

£1-68p.

OUR PART NUMBER

DESCRIPTION AS ABOVE

PRICE

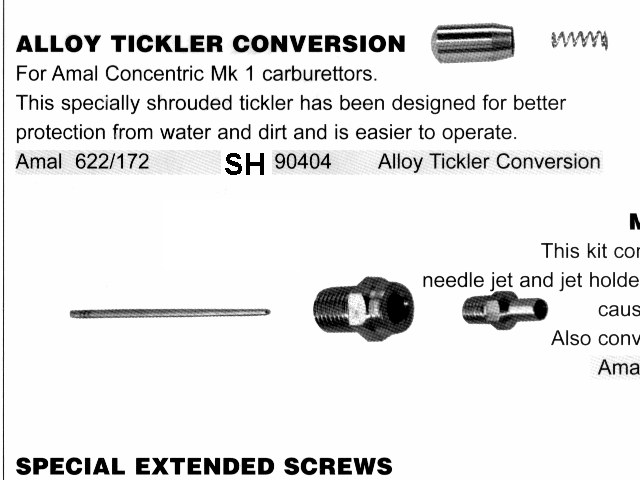

SH90404

 £2-81P.

SH90409

 £13-45P.

SH90402

 £1-96P.

SH90405

 £1-96P.

SH90410

 £10-49P.

SH90416

£4-32P.

SH90403

£2-92P.

SH90407

£3-55P.

SH90177

£1-60P.

SH90140

£1-92

Main jet. Sizes 50 to 980

£2-78p.
